TECH SPECS
Construction: Bolt On
Body Material: Chambered Selected Ash
Neck Material: Hard Maple with Graphite Reinforcing Rods
Neck Finish: Clear Satin Acrylic
Neck Shape: Custom "C/V"
Neck Thickness: 20 mm at 1st fret, 23 mm at 12th fret
Scale Lenght: 34" (864 mm)
Fingerboard: Hard Maple or Graphitex
Fingerboard Radius: 12" (304 mm)
Number of Frets: 24
Fret Size: Medium Jumbo (Factory Fret Leveling)
String Nut: PPS "Tedur"
Nut Width: 40mm
Position Inlays: Side and Face Dot
Truss Rods: Double Action

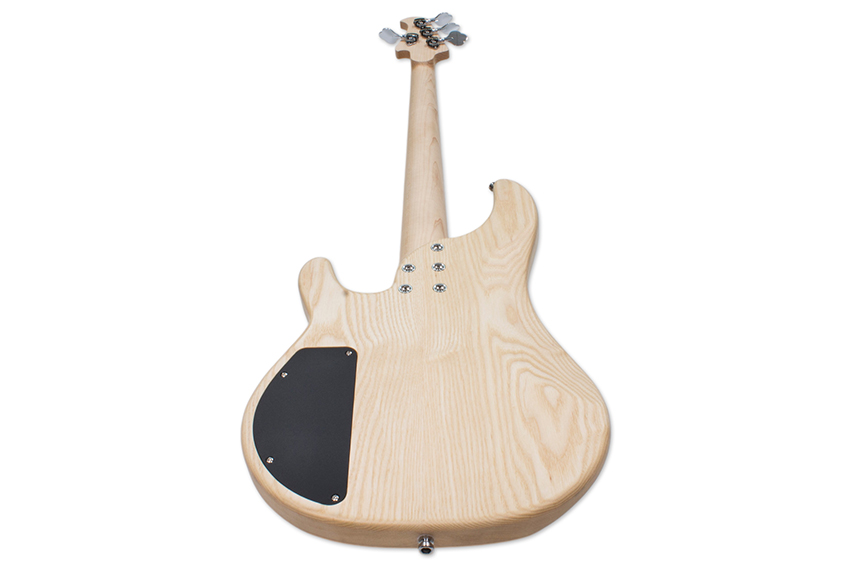

Neck Plate: 5-Bolt
Bridge Pickups: Ferrite Humbucker
Neck Pickups: Ferrite Single Coil
Controls: Active preamp with Volume (push-pull Active/Passive), Treble (passive tone), Bass, 5-way Selector Switch
Bridge: Brass with Quick Release System Black/Chrome/Gold
String Spacing: 20mm

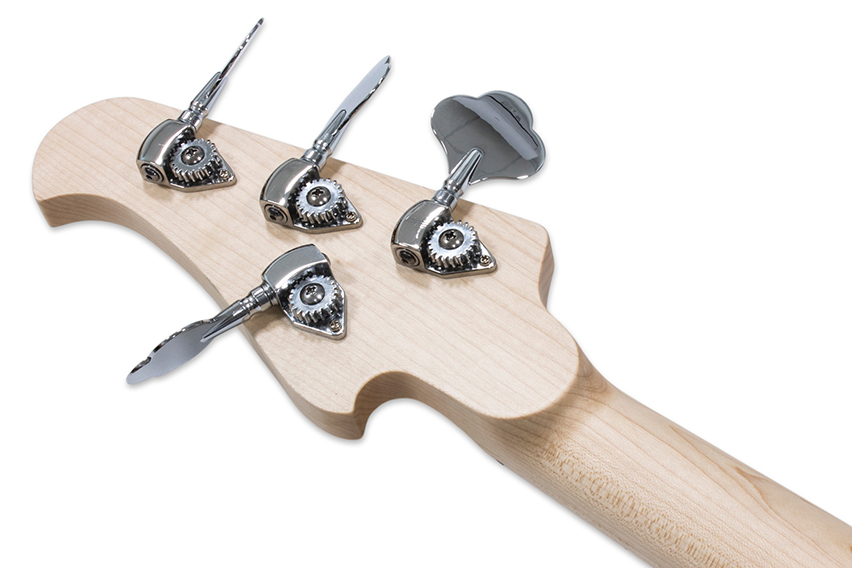

Tuning Machines: Open Frame Lightweight Black/Chrome/Gold
Pickguard: 3-Ply Vinyl
Hardware: Black/Chrome/Gold
Strings: Steel 45-105 Gauges
Weight: 3,8 kg / 8,4 lbs average
Accessories: Alusonic Gigbag, Hex Key Set, Security Straplock, Certificate of Authenticity, 2 Years Warranty
Colours: Clear Satin Acrylic
|
|
|
|
| |
|
|
|
|
| |
|
|
|
